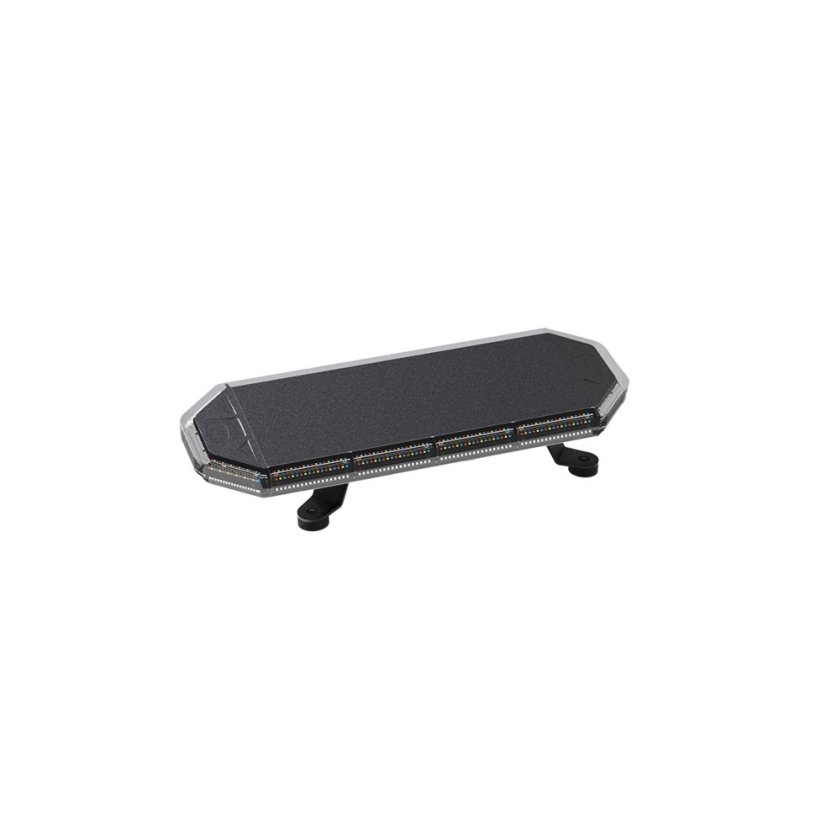

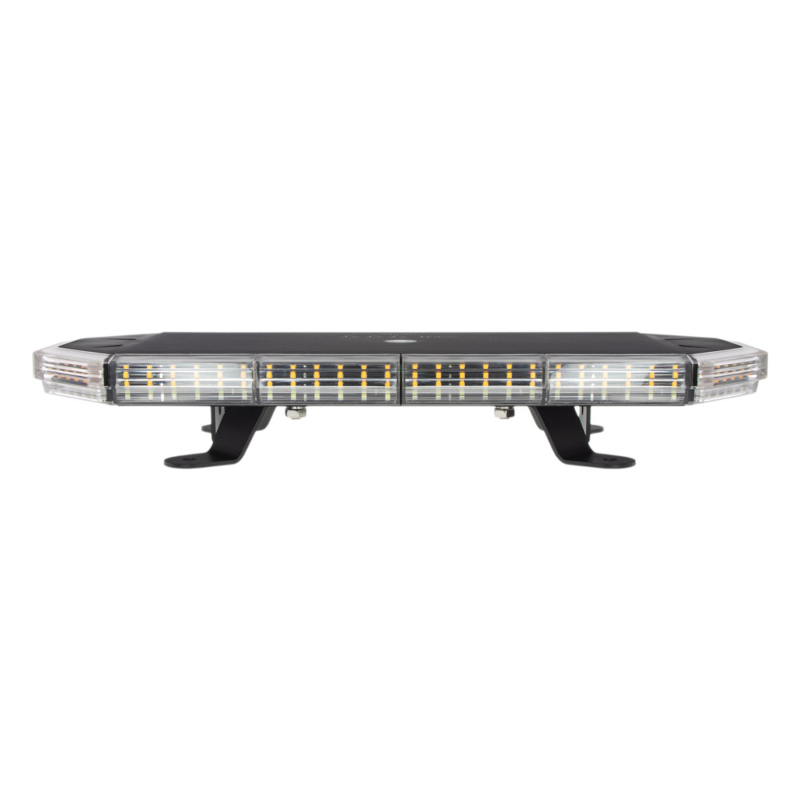

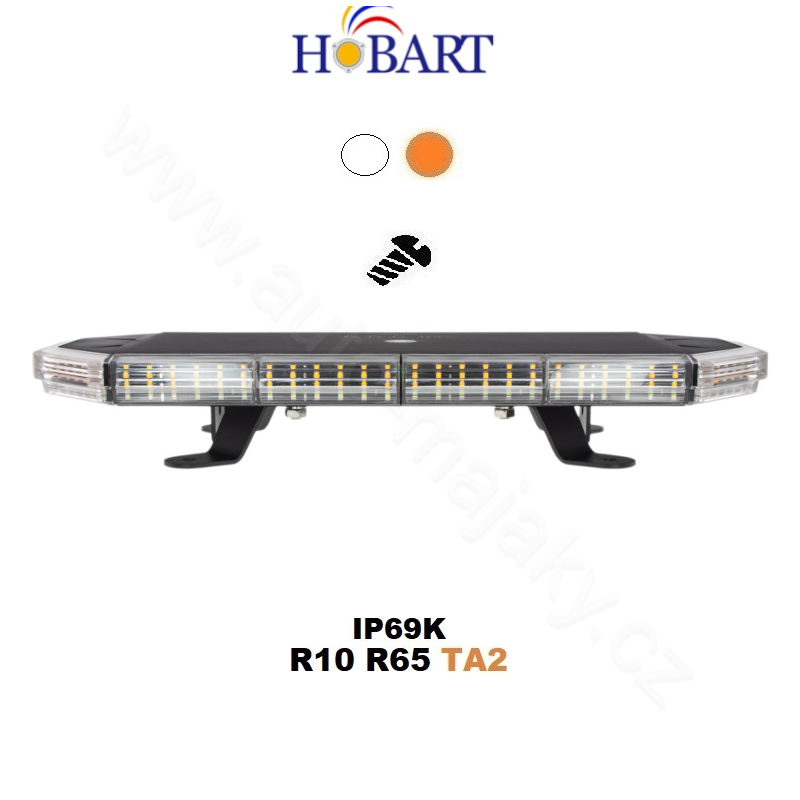

LED light ramp suitable for all types of vehicles. It is designed for vehicles where special emphasis is placed on the warning effect.
The thinnest and lightest LED ramp on the market, the only one that combines 2 colours in one ramp (2V1) - orange and white light.
Due to its small height, it is particularly suitable for modern aerodynamic cars, where it does not cause excessive noise and increased fuel consumption.
The ramp has Class 2 homologation, which means that it can be switched on manually or with the help of a built-in light sensor.
Advantages:
- 2in1 - 2 available colours in one ramp
- Versatile white light - allows for workplace illumination or routing
- light sensor - allows automatic brightness adjustment to ambient light conditions
- R65 Class 2 approval - the brightest light ramp on the market
- easy to repair - using separately replaceable modules
- maximum waterproof - IP69K
- aluminium body with powerful cooling system
Specifications:
- supply voltage 10 - 30 V
- light source: 68 x 2W LED (orange), 100 x 0.5W LED ( white)
- 15 variants of warning flashing modes including routing
- ECE R65, Class 2, R10, CISPR 25 approval

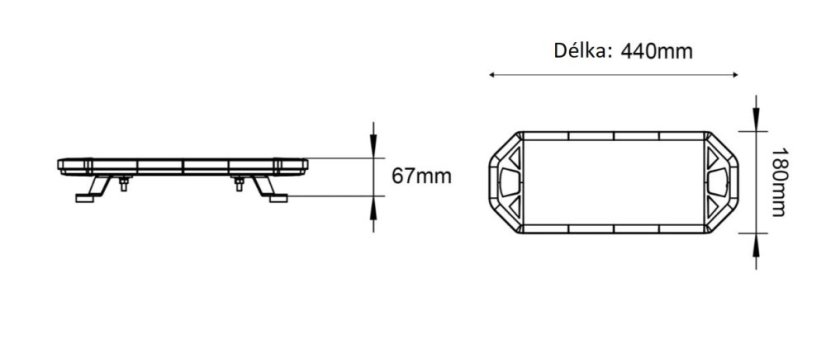

- Dimensions: 440 x 180 x 30 mm (height including bracket 67 mm)
- waterproof IP69K
- working temperature -45º - +65ºC
- screw mounting
- aluminium body + UV resistant PC cover
- Connection: 40 cm power cable terminated with loose wires
| Color | White, Orange |
|---|---|
| Length | 440 mm |
| Homologation | EHK R10, EHK R65 TA2, CISPR 25 |
| Cover | IP69K |
| Voltage | 10-30V |
| Width | 180 mm |
| Traffic director | Yes |
| Light intensity levels | Two levels |
| Height | 68 mm |
| Lightbar height without carriers | 30 mm |
| Connection method | Loose wires |
| Method of attachment | Fixed to screws |
